- Functional Description
- Specifications

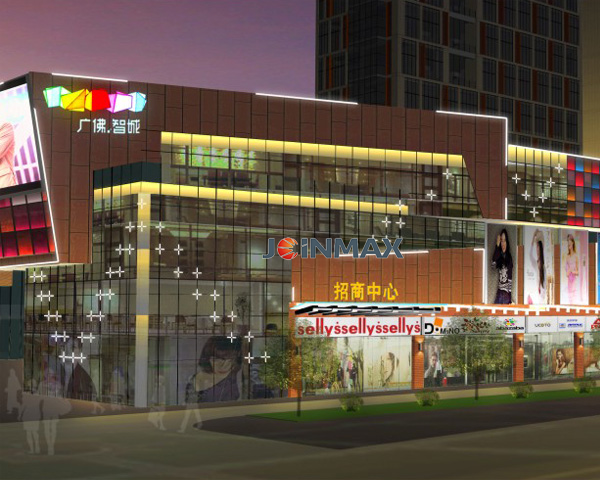

- Applications
1、Die-casting aluminum, good heat dissipation function, high efficiency and wide viewing angle.
2、High power SMD LED light source. Can choose several color light source. Suitable for indoor and outdoor architectural decorative lighting.
3、Low voltage power supply, with DMX512 control bus, can display static or dynamic lighting effects.4、Fully sealed structure, IP65, easy installation, suitable for outdoor environment.
技術分類 Technical Classification | 項目規格 Item | 參數 Parameter |
電氣性能 Electrical Properties | 供電電壓 Input Voltage | DC24V |
最大功耗Power Consumption | 6.5W | |
光學性能 Optical Properties ? ? | 光源組成LED Composition | 4pcs high power white LED |
光色Colors | Cold white 5700K | |
最大光通量Max Flux | 80 lm | |
光束角Beam Angle | 120° | |
顯示單元（像素）Pixels | 4 pixels | |
亮度等級Brightness Grade | 256 grade | |
光通維持率Lumen Maintenance | 50000 hour（@70%） | |
控制方式Control Mode | 控制接口 Control Connection | DMX512 |
? | 控制系統 Control System | JoinmaxEasyplay5.0 |

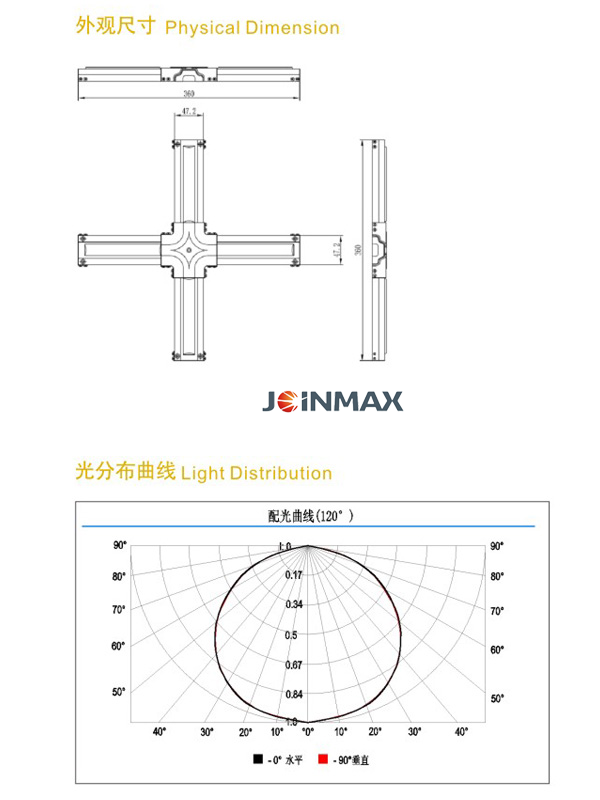

結構性能 Structure | 尺寸 Size | 360mm(L)×360mm(W)×26.3mm(H) |
燈體材料 Material | Aluminum housing and PC | |
表面顏色 Surface Color | Black and gray | |
燈具連接 Light Connection | 4-pin power cable+4-pin signal cable | |
防護等級 IP Grade | IP65 | |
工作溫度Work Temperature | -20℃～50℃ | |
工作濕度Work Humidity | 0～90% | |
最大級聯數Connection Qty | 12pcs lights | |
使用環境Work Environment | Dry and Wet | |
安全性能 Safety | 認證Certificate | CE，CCC |
Color | Product Number |
White（5700K） | JM01-300401RM |
? | ? |
-
