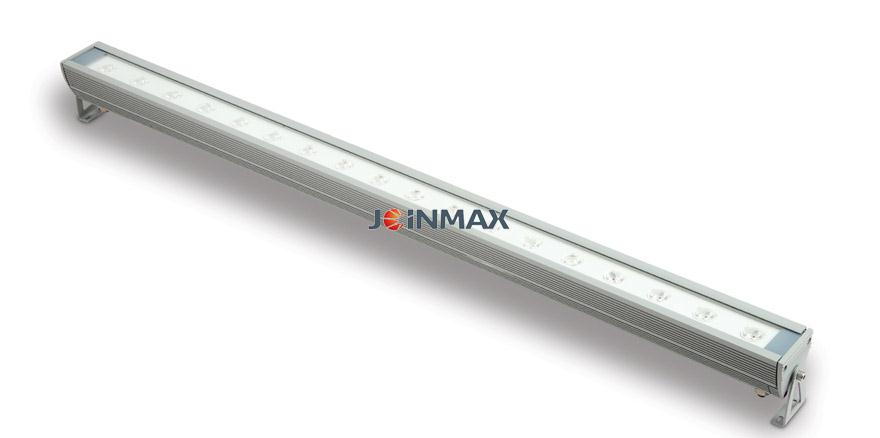

1. The light lamp is made from high-quality aluminum alloy with clear streamline, compact structure, beautiful outlook, good endurance, erosion proof and easy installation.
2. The light lamp is of static sprayed surface or oxidized positive anode with good endurance.
3. 4mm-thick high-strength steel glass with good light transmittance rate and shake proof ability
4. Employ high-light LED as special optics system to comply with light source , which strengthen the light strength of the light lamp.
5.Dynamic demonstration with full color s, yellow, white, purple, orange, green and blue
6. The light lamp could be installed separately or combined together.
7. Unique water-proof design with aluminum lock combined with silicone rubber, no need to be concealed by glass glue and ensure the water-proof and dust-proof ability of the light lamp.
8. Grading option：15°30°45°60°

技術分類 Technical Classification	項目規格 Item	參數 Parameter
電氣性能 Electrical Properties	供電電壓 Input voltage	AC85-265V
	?最大功耗 Max Power Consumption	21W
光學性能 Optical Properties ? ?	光源組成 LED composition	15、18、21顆LED燈珠 15/18/21 LED lamp
	光色 LED Color	綠色/紅色/藍色 Red/green/blue
	光通量 Luminous flux	1785lm
	光束角 Beam Angle	15°/30°/45°/60° ?
	亮度燈具 Brightness Grade	每種顏色256級 256 grade percolor
	光通維持率????????? Luminous maintenance rate	30000 hour（@85%）
控制方式 Control Mode	控制接口 Interface	DMX512??????????? ?
	控制系統 Control System	中鳴科技 Easyplay5.0 (Joinmax)
結構性能 Structure	尺寸(長x寬x高) Dimension (L*W*H)	1000X65X60（mm）
	重量 Weight	3.5kg
	燈體材料 Material	壓鑄鋁成型 Die-casting aluminum
	表面顏色 Surface Color	銀灰色 Grey aluminum
	燈具連接 Connection	4芯防水接插件 4-pin waterproof connector
	防護等級 Protection Rating	IP65
	工作溫度 Work Temperature	-20℃～50℃
	工作濕度 Work Humidity	0～90%
	使用環境 Work Environment	干燥/潮濕 Dry/wet
