- Functional Description
- Specifications
- Applications

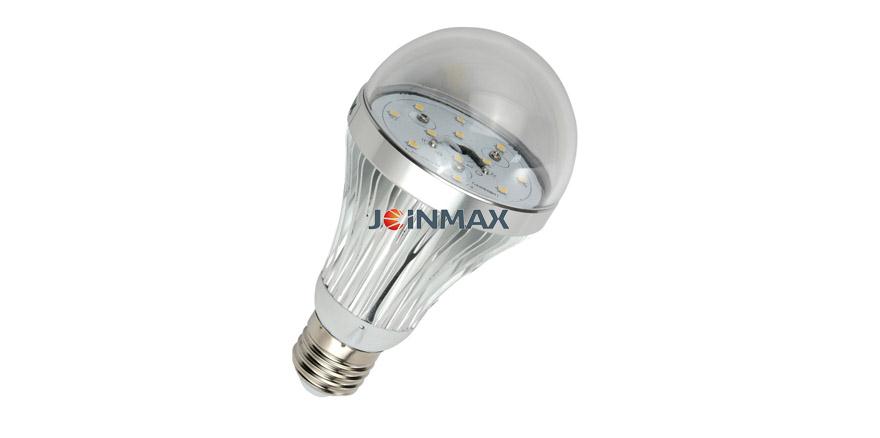

1.Employ highly-effective SMD LED light source to be integrated ?into lamp outlook design
2. Extra-large heat dissipation area with good heat dissipation effect and prolong the working-life of light source
3. Patented outlook design and light distribution design, which suit the courtyard lamp use.
4. With LED at different power, the power of the lamp could cover 3-8W and satisfy different requirements .
?技術分類 Technical?Classification | 項目規格 Item | 參數 Parameter |
Z | 供電電壓 Input?voltage | AC100-240?V?,50-60Hz |
最大功耗? Power?Consumption | 7W | |
功率因數 Power?Factor | PF>0.9 | |
光學性能 Optical?Properties | 光源組成 Lamp | SMD?LED |
光通量 Luminous?Flux | >560?Im | |
顯色指數 Color?Rendering?Indes | CRI>80 | |
色溫 Color?temperatare | 5000K | |
光效值 naire?Efficacy | >80lm/w | |
發光角度 Beam?Angle? | 270° | |
光通維持率 Iuminous?Matintenance?Rade | 35000hour(@70%) | |

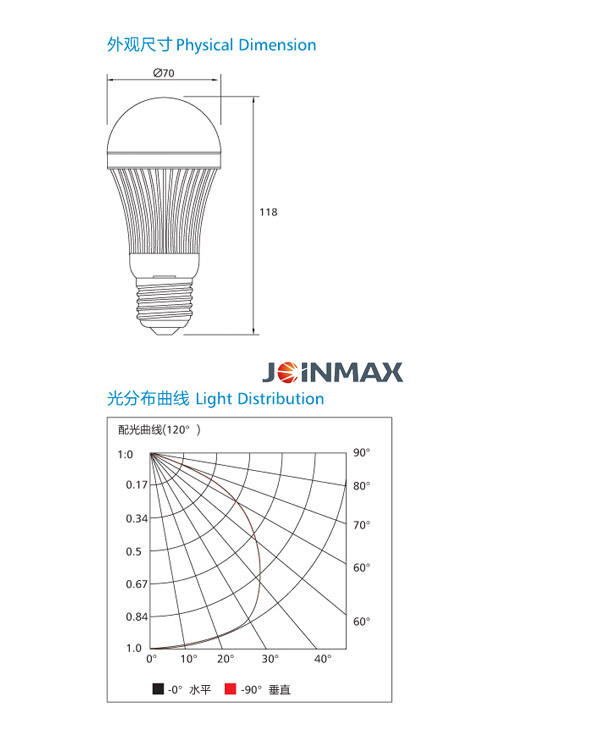

結構性能 Structure | 尺寸(長x寬x高)? Dimension?(L*W*H) | ￠70mm?X?146mm |
重量 Weight | 110g | |
燈體材料 Material | 擠壓鋁+PC Die-casting?aluminum?and?PC | |
燈頭燈座 Life?Span | E27 | |
工作溫度 Work?Temperature | -20℃～50℃ | |
工作濕度 Work?Humidity | 0-90% | |
使用環境 Storgae?Temperature | 干燥、潮濕 Dry/humid | |
安全性能 Ssfety | 認證 Certificate | RoHS??CE??CCC |
-
