- Functional Description
- Specifications

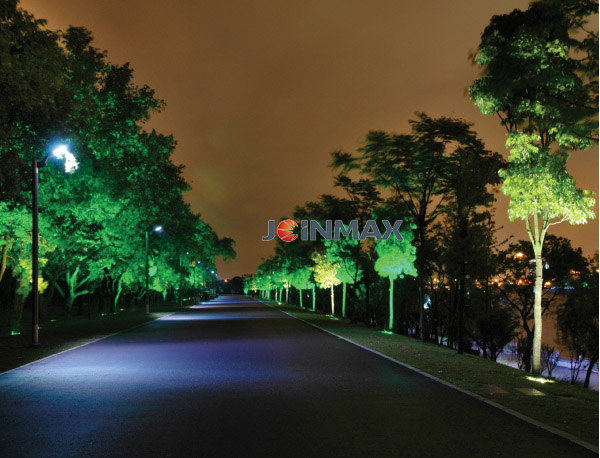

- Applications

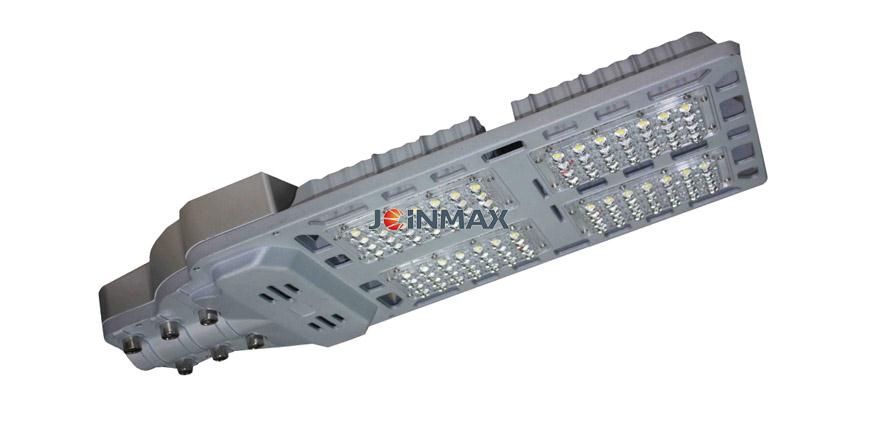

1.?????? Light source: high-power CREE original packaged LED (could also be provided to other clients)
2.?????? Without ultraviolet rays/ little infrared rays radiation
3.?????? The bat-wing light shape
4.?????? Superior heat-dissipation system
5.?????? Power efficacy:＞ 85%
6.?????? Exuded aluminum alloy shell as erosion proof
7.?????? Protection grade IP65
8.?????? Accord to CJJ45-2006 city road light designing standard
9.?????? Accord to GB/T 24827-2009 road and street light lamp performance requirements
10.?? Accord to CQC 3127-2010 energy-saving accreditation technology criteria
?參數分類Technical?Classification | 項目規格Item | JZ18-305601 | JZ18-311202-018 | JZ18-311201-018 |
電氣參數Electrical?Properties | 供電電壓Input?voltage | 100~240VAC | 100~240VAC | 100~240VAC |
最大功耗Max.power?consumption | 80W | 120W | 150W | |
功率因數?Power?factor | >0.95 | >0.95 | >0.95 | |
光學參數Optical?Properties | 光源組成LED?lamp??composition | 大功率CREE | 大功率CREE | 大功率CREE |
光通量Luminous?flux | 6000~7200Lm | 9000~11000Lm | 10000~13500Lm | |
亮度等級Brightness?grade | 2級 2levels | 2級 2levels | 2級 2levels | |
色溫值?CT | 2700K~6500K | 2700K~6500K | 2700K~6500K | |
顯色指數?CRI | 70 | 70 | 70 | |
控制方式Control?Mode | 控制方式Control?Mode | 上電常亮 Electrlify?light | 上電常亮 Electrlify?light | 上電常亮 Electrlify?light |

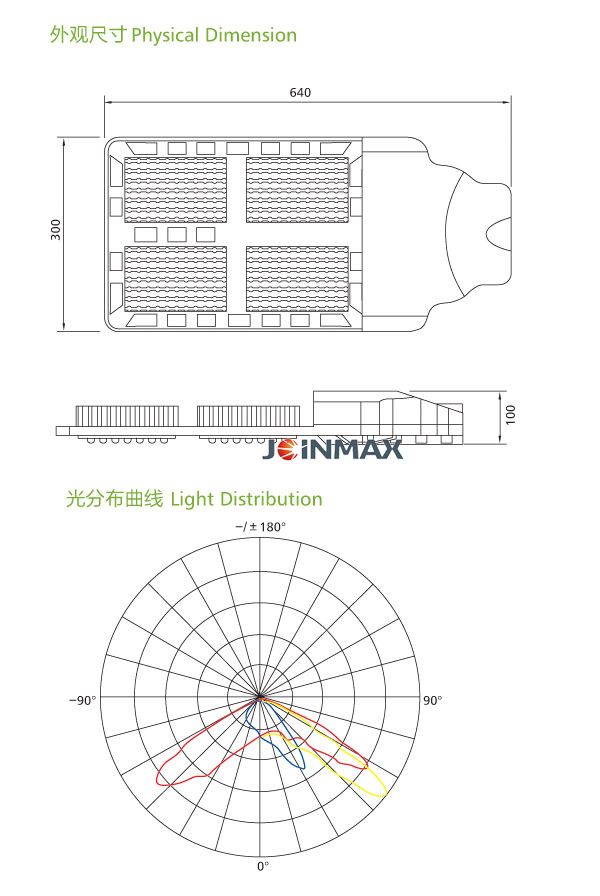

結構參數Structure?Properties | 尺寸(長x寬x高)?Dimension?(L*W*H) | 640X300X100（mm） | 640X300X100（mm） | 640X300X100（mm） |
重量Weight | 7.7kg | 7.7kg | 7.7kg | |
燈體材料Material | 壓鑄鋁合金?Die-casting?aluminium? | 壓鑄鋁合金Die-casting?aluminium | 壓鑄鋁合金Die-casting?aluminium | |
表面顏色Surface?Color | ||||
透鏡Lens | PC?Optical?Lens | PC?Optical?Lens | PC?Optical?Lens | |
燈具連接Connection | ||||
安裝直徑（OD，外徑） | 60mm | 60mm | 60mm | |
常規參數Ambient?Condition | 工作溫度Work?Temperature | -30℃~+50℃ | -30℃~+50℃ | -30℃~+50℃ |
工作濕度Work?Humidity | -3o°C—50°C | -3o°C—50°C | -3o°C—50°C | |
存儲溫度Storage?Temperature | -30℃~+70℃ | -30℃~+70℃ | -30℃~+70℃ | |
安全性能Safety | 使用環境Work?environment? | 室外道路照明 Outdoor | 室外道路照明 Outdoor | 室外道路照明 Outdoor |
防護等級Protection?grade | IP65 | IP65 | IP65 |
-
