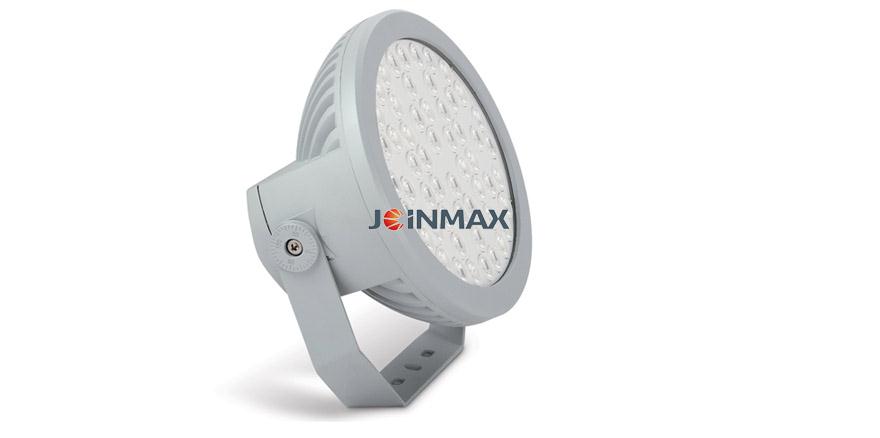

1. Design with an oval as the main body, incise the main elements with the straight lines so that to achieve the characteristics of streamlining, elegant ,power and soft combining effects.

2. The lamp is made from high-pressure casting aluminum

3. The lens is made from steel glass.

4. The lamp could be adjusted by angle with a range of 0-180 degree.

5.Light source: LED beadl, the maximum power: 72W

6. The lamp installation method could be divided into upper installation and lower installation

7. The lamp structure and electronic safety accord to EN60598 GB7000

技術分類 Technical Classification	項目規格 Item	參數 Parameter
電氣性能 Electrical Properties	供電電壓 Input voltage	AC85-265V
	?最大功耗 Max Power Consumption	72W
光學性能 Optical Properties ? ?	光源組成 LED composition	36、54顆LED燈珠 36/54 pcs of LED lamp
	光色 LED Color	綠色/紅色/藍色 Red/green/blue
	光通量 Luminous flux	6120lm
	光束角 Beam Angle	15°/30°/45°/60° ?
	亮度燈具 Brightness Grade	每種顏色256級 256 grade percolor
	光通維持率????????? Luminous maintenance rate	30000 hour（@85%）
控制方式 Control Mode	控制接口 Interface	DMX512??????????? ?
	控制系統 Control System	中鳴科技 Easyplay5.0 (Joinmax)
結構性能 Structure	尺寸(長x寬x高) Dimension (L*W*H)	334X270X166（mm）
	重量 Weight	5.5kg
	燈體材料 Material	壓鑄鋁成型 Die-casting aluminum
	表面顏色 Surface Color	Optional
	燈具連接 Connection	電纜連接 Cables
	防護等級 Protection Rating	IP65
	工作溫度 Work Temperature	-20℃～50℃
	工作濕度 Work Humidity	0～90%
	使用環境 Work Environment	-20℃～40℃
