- Functional Description
- Specifications

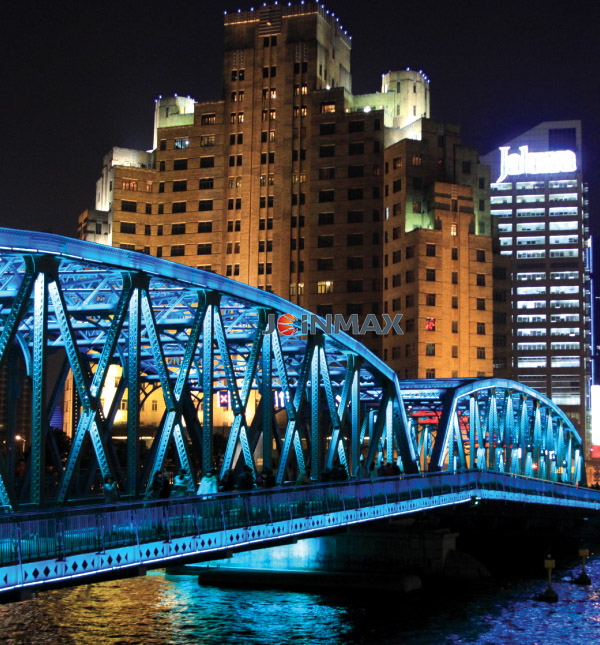

- Applications

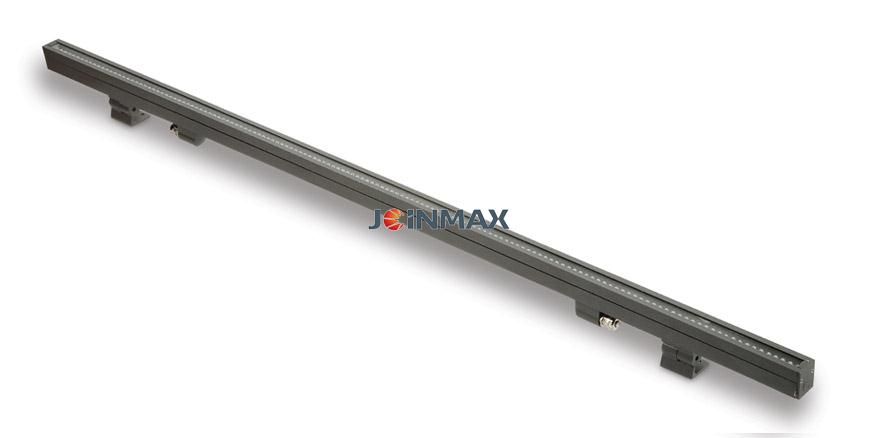

1.Small-power project lamp, this product is designed as a highly-effective project light product for small-space room lighting needs. Employ SMD with 120 degree angles attached to LED as light source and light distribution is more even, serve as the best option for small-space light.
2.Employ the low-voltage electricity supply of the external power, better safety and reliability, satisfy the lighting needs in small space.
3.Multiple color available with flexible design and application including warm white, nature white, cold white, blue and full color for customers to choose from based on their needs.
4.Provide 12V, 24V voltage based on environment needs, 12V lamp with better electricity and 24V with better load.
5.Employ the patented technology 【patent number：ZL 2010 2 0262526.4：ZL 2009 1 0223737.9】write the address in the controlling end after finishing the lamp installation, more convenient installation and better reliability.
技術分類 Technical Classification | 項目規格? Item | 參數? Parameter |
電氣性能 Electrical Properties | 供電電壓?Input voltage | DC24 V/ DC12V |
最大功耗?Max.power consumption | 12 W | |
光學性能 ? Optical Properties | 光源組成LED composition | 48顆SMD 3合1LED 48 pcs of SMD LED lamps |
光色?LED Color | 全色?Fullcolor | |
光通量?Luminous Flux | 240 lm | |
光束角?Beam Angle | 120° | |
顯示單元?Display Unit | 8像素/米?8 pixel/m | |
亮度等級?Brightness Grade | 每種顏色256?級?256 grade per color | |
光通維持率luminous maintenance rate | 50000 hour（@70%） | |
控制方式 Control Mode | 控制接口?Interface | DMX512 |
控制系統?Control System | 中鳴科技Easyplay5.0 (Joinmax) | |
結構性能?? ? Structure | 尺寸(長x寬x高)Dimension (L*W*H) | 1000X28X72（mm） |
重量?Weight | 550g | |
燈體材料?Material | 擠壓鋁型材?die-casting aluminum | |
表面顏色?Surface Color | 鋁原色?Grey aluminum | |
燈具連接?Connection | 6芯防水接插件?6-pin waterproof connector | |
防護等級 Protection Rating | IP65 | |
工作溫度?Work Temperature | -20℃～50℃ | |
工作濕度?Work Humidity | 0～90% | |
最大級聯數Max. cascade connection qty | 12支（DC24V）8支（DC12V）? 12pcs (DC24V)? 8pcs (DC12V) | |
? | 使用環境?Work Environment | 干燥/潮濕?dry/humid |
安全性能Safety | 認證?Certificate | CE |
-
